Putting counts and percentages on a bar chart

You are here:
< All Topics
image_pdfimage_print

Bar charts normally display one value per bar. You can choose whether this is:

  • the count (number of respondents who chose that response)
  • the percentage (number of respondents as a percentage of the total).

This tutorial explains how to create a bar chart that shows both the counts and the percentage values on a single chart:

Chart, bar chart

Description automatically generated

Note: To show either counts or percents on a bar chart, use the preconfigured chart styles supplied with Snap Desktop, such as, Bar Counts Labelled or Bar percent labelled.

Bar chart styles

Bar charts are different from tables because you can only display one value for each bar (the height of the bar on the scale).

You can represent counts and percentage values together in a table.
Graphical user interface, application, table

Description automatically generated with medium confidence

For a bar chart, the height of the bar must be either the counts or the percentage. If you want to display both the counts and the percentage value, you need to pass in the counts and use the Chart Designer to calculate the percentages from the counts.

The following examples use the Bar Counts style to display an item in the Analysis field.

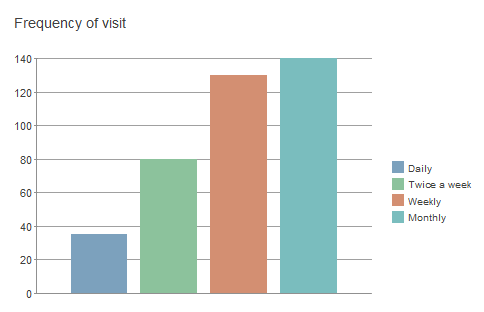

If you enter a term in the Analysis field, the bar chart styles identify the separate items by colour and use a key to tell you which bar is associated with which question or question code.

Chart, bar chart

Description automatically generated

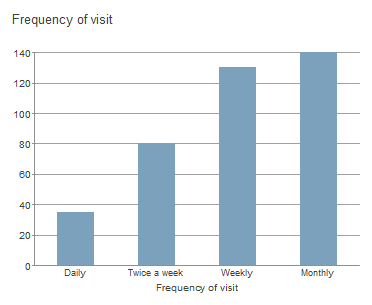

If you enter a term in the Break field, the bar chart styles identify the separate item by labelling the X-axis below the bars. (This also happens if you enter the term in the Analysis field and check Transpose.)
Chart, bar chart

Description automatically generated

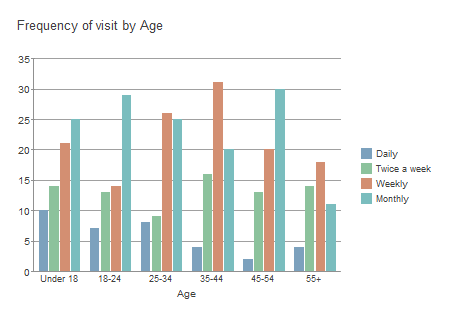

You can enter analysis terms in both the Analysis and the Break fields (as for a cross-tabulation) and see the results displayed as a bar chart.
Chart, bar chart

Description automatically generated
If you are only using a single term, you can choose whether to have your bars identified by a colour key or labelled.

If you want your chart to give the exact values for each bar, you can display them on the chart.

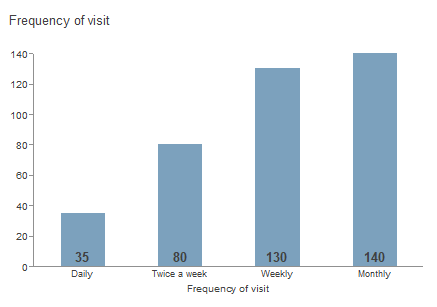

Bar chart of counts using the Bar Counts Labelled style. The term is in the Analysis field and the Transpose box is checked.
Chart, bar chart

Description automatically generated

Bar chart percentages

When you display a percentage, you need to know what it is a percentage of. The base percents shown in the table are calculated as the percentage of all the respondents that gave that response.

If you are charting a single-response question, the total number of responses is probably the same as the number of respondents. If you are charting a multi-response question, there will be more responses than respondents.

The Chart Designer can’t work out how many respondents there are from the number of responses, so it can’t calculate the percentages automatically. You must tell it.

Step 1: Creating a table of the analysis

  1. Open the Crocodile Rock Cafe survey supplied with Snap Desktop.
  2. Click Analysis Table  on the Snap Desktop toolbar to create a table.
  3. In Analysis, enter Q2.
  4. Select Counts and Base Percents.
Graphical user interface, text, application, email

Description automatically generated
  1. Click Apply to display your table. You can use this to confirm that you have displayed the correct values on the chart.
Graphical user interface, application, table

Description automatically generated with medium confidence

Step 2: Creating the bar chart

  1. Click Analysis Chart  on the Snap Desktop toolbar to create a chart.
  2. Set the style to Bar Counts and set the analysis to Q2.
Graphical user interface, text, application, email

Description automatically generated
  1. Click Apply to display your chart. This shows a basic bar chart with no figures displayed on the bars.
Chart, bar chart

Description automatically generated
  1. Click Edit Style on the chart toolbar. This opens the Chart Designer where you can change the appearance of the chart.
  2. In the chart elements list, click on Series then click on the Daily datapoint. Click on the Datapoint Label defaults.
  3. In the Appearance tab, select Base to display the counts and percent at the top of the bar. In the Datapoint Label section select Automatic, Value and Percent.
Graphical user interface, application

Description automatically generated
  1. In the Value Format tab, select Number and 0 to display whole numbers.
Graphical user interface, text

Description automatically generated
  1. In the Percent Format tab, select As Percentage and 0% to display percentages.
Graphical user interface, text, application

Description automatically generated
  1. Repeat this for all the datapoints.
  2. Click Apply to update the chart.
Chart, bar chart

Description automatically generated
  1. Compare the percentage figures on the chart to the figures on the table. You will see that they do not match. This is because the figures on the chart are calculated automatically using the size of the largest bar. To make the figures display correctly, enter the base figure in the Chart Designer to use to calculate the percentages.
  2. In the Chart Designer click the Y Axis section. The scale is set automatically. Clear the Automatic check box then set the Maximum to the respondent base for the survey: 385 in this example.
Graphical user interface, application

Description automatically generated
  1. Click Apply to update the chart. The percentage values displayed on the chart are now correct.
Chart, bar chart

Description automatically generated

Step 3: Changing the labels on the Y-axis

Sometimes the chart appears with an unnecessarily precise Y-axis labelling. You can choose to not display the Y-axis, or you can change the display of the labels, so they do not show decimal places.

Chart, waterfall chart

Description automatically generated

Hide the Y-axis

You can stop displaying the y-axis by clearing the Show box.

Graphical user interface, text, application, Word

Description automatically generated

Changing the number of divisions on the Y-axis

Change the number of grid divisions to a factor of 385 (e.g., 7), so that no decimal places are needed. This is done by setting the value in the Major box under Divisions.

Graphical user interface, application

Description automatically generated

Format the Y-axis labels

  1. Select Axis Labels under Y Axis in the chart elements pane.
  2. Select the Format tab.
  3. Select the Number category and 0 as the Format Code.
Graphical user interface, text, application

Description automatically generated
  1. Click OK.

Saving the style

You can save the chart style that you have just created by right clicking the chart and selecting Save Style from the context menu.

Further information

To find out more about how the Chart Designer works, see Using the Chart Designer.

There is a worksheet on creating your own chart styles: Use Chart styles to add branding to your charts.

If there is a topic you would like a tutorial on, email to snapideas@snapsurveys.com
